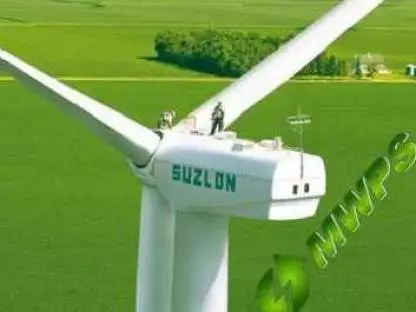

INDIA – 34 x Suzlon S66
Used Wind Turbines – 1.25mW
SOLD
Machines’ year of build
- 10 units from 2006
- 24 units from, 2007
- All 34 turbines are in very good condition – Turbine availability is 100% – Service history is available
- Location- South West India.
- All turbines are currently still in operation
- Price is excluding dismantling (if taken down & sold without land) – ExWorks owner’s site- India
- The site is CDM registered. Carbon credit avail – 22 crores.
Plant owners propose to sell the plant along with land due to business diversification
- For financing, the current bank loan can be taken over from the current owner- the loan period -10 years.
- Carbon credit benefit is being paid to the buyer – 70000000/annum {7 crore)
- Ppa for 20 years
- How much is being paid per kWh in rupee? Rupees- 3.40 paisa/kWh
- Generation last year? (12 months of data)
- Total – 78500000. {78.5 million kWh for 34 machines in the last 12 months.}
TECHNICAL SPECIFICATION – Suzlon S66 1.25mW:
ROTOR
Rotor diameter 66m
Hub height 56m
Installed electrical output 1250kw
Rotor swept area 3421m2
Rotational speed 13.8/20.7 rpm
Rotor blade material GRP
Regulation pitch regulated
OPERATIONAL DATA
Cut in wind speed 3m/s
Rated wind speed 14m/s
Cut-out wind speed 22 m/s
GENERATOR
Type Asynchronous generator 4/6 pole
Rated output 250/1250kW
Rotational speed 1006/1506 rpm
Rated voltage 690v
Frequency 50 Hz
Insulation class H
Cooling system Air-cooled
Enclosure class IP 56
GEARBOX
Type Integrated 3-stage gearbox,
1 planetery& 2 helical
Gearbox manufacture Winergy
Gear ratio 1:74:917
Nominal load 1390kw
Type of cooling Oil cooling, forced lubrication
YAW DRAW
yaw draw system 4 active electrical yaw motors
Yaw bearing polyamide-slide bearing
OPERATING BRAKES
Aerodynamic brake 3 independent system with blade pitching
Mechanical brake
spring-powered disc brake,
hydraulically released, failsafe, microprocessor controlled
DOWNLOAD TECHNICAL SPEC SHEET:
