Brand New 225kW & 200kW Wind Turbines
RRB Vestas V29
Available with 29m – 31m – 40m & 46m Towers
ITALY! NOW ALSO AVAILABLE AS 200kW VERSION!
Full turnkey solutions also available – Worldwide!
- RRB Energy V29 – 225kW (50Hz) aka Vestas RRB V29 – Also available with 200kW generator! – No modification for limitation necessary!
- Incl. 1-year standard warranty
- 2 – 5 years extended warranty options also available
- Shipping service available to any worldwide major seaport
- Delivery lead times only 5 -6 month from the order
- Inquire for shipping prices to other seaports
- Inquire for prices on installation services available
TECHNICAL SPECIFICATIONS

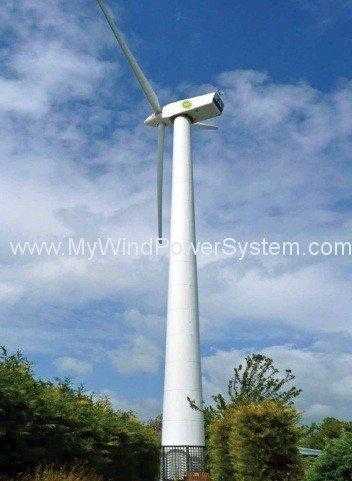

RRB Vestas V29
Summary
- Turbine type: RRB Energy V29 – 225kW or 200kW – (50Hz)
- Nominal Output: 225 kW (50Hz)
- Rotor diameter: 29m
- Tower Height: 29m – 31m – 41m & 46m (3 sections)
- Type: Pitch controlled
- Configuration: 3 Blades Horizontal Axis, Upwind
- Cut-in Wind Speed: 3.5 m/s
- Cut out Wind Speed: 25 m/s
- Nominal Wind Speed: 14 m/s
- Survival Wind Speed: 56 m/s
- Rotor RPM: 33 rpm / 43 rpm
- Swept Area: 573 m2
- Blade Material: Fibreglass / reinforced polyester
Generator:
- Type: Dual Wound Asynchronous
- Power Regulation: Pitch
- Frequency: 50HZ
- Voltage: 400 V
Brake & Safety System:
- Main Brake System: Disc
- Secondary Safety: Pitch control
Sale price includes:
- Complete Turbine – 1-year warranty – Tower, Nacelle, Blades, Hub, Controller & Foundation ring
- Technical drawings and manuals
RRB Energy V29 – 225kW (50Hz) aka Vestas RRB V29 – Also available with 200kW generator! – No modification for limitation necessary! Incl. 1-year standard warranty. 2 – 5 years extended warranty options also available
MWPS World can assist in worldwide shipping & transportation as well as arranging installation and commissioning at highly competitive prices.
DOWNLOAD BROCHURE:
IMPORTANT NOTES
- Viewings are arranged only if a signed LOI (Letter of Intention) has been received.
- Time wasters and tire kickers will strictly not be accommodated!
