Overstock 25kW wind turbines
West Wind – Pioneer 25kW Wind Turbines for sale
Brand new with a 5-year warranty

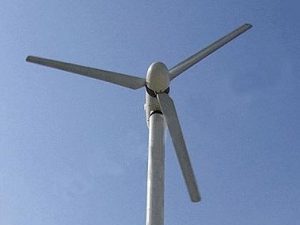

PIONEER 25kW Wind Turbines
Technical Specifications
- Upwind Active Yaw System
- Generator
- Rated Power: 25Kw
- Type: 3 phase, 60 Hz synchronous 240v or 480v AC
- RPM: 1800 (3 phase)
- Optional: 240v single phase
- Optional: 50 Hz (voltage set per country standard)
Mono-pole Tower
- Construction material; steel plate
- Height 80 ft (standard), (Optional) 100ft, 120ft, 150ft
- Hub height: 84 ft
- White powder-coated
- Nacelle access: exterior tower ladder with Cat Walk
- Base Diameter: 54 inches
- Control Panel located outside the bottom of the tower
Rotor
- Orientation: Upwind
- 16 foot
- 3 blades, fixed pitch
- 33.5 ft diameter
- RPM 100
- Noiseless than 68 decibels at the tower
- Blades Fiberglass
- Weight – approx. 75 lbs each
- Area swept: 75 Square meters
Component Weights
- Nacelle, rotor, and blades 3,450 lbs
- Tower (2 sections): 7,100
Operational
- Cut in speed: 8 mph
- Cut-off speed: None (stall-regulated blades)
- Survival wind speed: 120 mph
Other
- Touch screen control panel
- User-configurable control parameters
- Soft Start for generator
- Ultra Sonic Wind Vane / Anemometer
- Slip-ring
- Fibreglass nacelle cover/nose cone
PIONEER 25kW Wind Turbines – Options
- Internet Accessibility
- Heated wind vane
- Transmission heater
- Noise-dampening foam installed
- Single-phase converter
- Safety Features
- Induction generator anti-Islanding
- Fail-safe hydraulic disk brake
- The blade over speed centrifugal actuated tip brakes
- Thermal protection on the generator
- Thermal protection on yaw controls
- Vibration sensor for fault shutdown
- Voltage and Frequency protection
- Area swept: 75 Square meters
- Weight – approx. 75 lbs each
- Blades Fiberglass
- Noiseless than 68 decibels at the tower
- RPM 100
- 33.5 ft diameter
- 3 blades, fixed pitch
- 16 foot
- Orientation: Upwind
IMPORTANT NOTES
- Viewings are arranged only if a signed LOI (Letter of Intention) has been received.
- Time wasters and tire kickers will strictly not be accommodated!
