Tower Height: 30 meters (four sections – very cheap to transport)
Number of turbines available: 2
First commissioning date: 1994
The sale price contains:
Complete Turbines – Towers, Nacelles, Blades, Hubs, & Brand New Orbital TMC3 Controllers
Orbital TMC3 Wind Turbine Controller (MADE IN DENMARK)
The TMC3 controller was exclusively designed for medium-sized wind turbines, typically from 10 kW up to 1 MW. Its All In One concept combines powerful control, supervision, communication, and data logging. Different communication interfaces can be used for monitoring and setting parameters. USB and Ethernet (Modbus TCP) are supported.
A removable display and control interface enables the customer to access status information and manipulate parameters. The controller offers a long-time logging function, which saves periodically all relevant measured values to an attached standard SD memory card.
The system can be extended with Orbital’s intelligent 8 Band OrbiVib vibration sensor. With this, frequency-selective vibration supervision and protection of the wind turbine is possible.

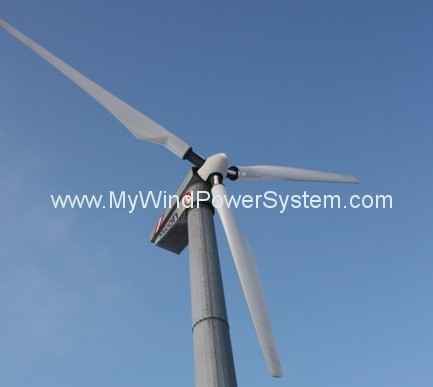

Micon M530 In Refurbishment Workshop
The modular construction of the TMC3 allows future extension with special functions. Optional extension cards are available:
8 Analog Inputs / 8 Analog Outputs – 0-10V / 0-20 mA (Software selectable)
Thyristor control for soft connect / Motor start of asynchronous generators.
These turbines are located in Sweden, still operating and part of a Vestas V27 and V29 wind farm closure consisting of 5 x Vestas V27 and 2 x Vestas V29. For details on the 5 x Vestas V27 units also immediately for sale, click here!
Located in a very low wind speed area, hence very low hours on all seven units and reason for their top mint condition. No need for refurbishing!
Two Vestas V29 units immediately available – built and first commissioned in 1996 – Can be viewed in full operation!
Immediately Available!
STARTING BID PRICE: Only EUR 64,800
These turbines do not require refurbishing and can be installed immediately on arrival at the buyer’s location
2 x Vestas V29 – 225/50kW- (50Hz)
Built 1996
30m Tower – one section towers – also available in 2 or 3 sections for ease of transport (towers can be cut into 2 or 3 pieces on request)
(€1,200 EUR for 2 section cut €1800 EUR for 3 sections cut)
29m Rotor Diameter
TECHNICAL SPECIFICATIONS
Summary:
Turbine type: Vestas V29 – 225/50
Nominal Output: 225kW and 50kW – (50Hz)
Rotor diameter: 29m
Tower Height: 30m
Turbine Type: Pitch controlled
Build in the year 1996
Turbine:
Configuration: 3 Blades Horizontal Axis, Upwind
Rated Power: 225kW/50kW
Rotor:
Rotor Diameter: 29m
Generator:
Siemens
Rated Power: 225kW/50kW
Gearbox:
Valmet Finnland
Tower:
30m – one section – also available in 2 or 3 sections for ease of transport (towers can be cut into 2 or 3 pieces on request)
MWPS World works with highly skilled re-manufacturers, refurbisher and machinists to ensure the refurbished wind turbines or re-manufactured equipment is properly restored to the original manufacturer’s specifications and is refurbished according to our high standards. Refurbished wind turbines offered by MWPS World are completely disassembled and thoroughly inspected and cleaned. Our highly experienced wind turbine refurbishment affiliates evaluate the condition of the reconditioned wind turbine and replace all wear parts. The main moving components will be reconditioned to new or better than new standards. The controls, gearbox, hub, generator, hydraulic system are all thoroughly reconditioned and are either restored or replaced. All refurbished wind turbines come with a full technical report of the reconditioning work undertaken and come with a standard 1-year warranty on replaced and refurbished parts and workmanship. Extended Warranty up to 5 years optional.
Refurbished Wind Turbines
Completed refurbished wind turbines are restored to the original manufacturer’s specifications and offer a minimum warranty of 1 year. Extended warranties may be purchased upon request.
Depending on the turbine type and size, a typical reconditioning process takes approximately 3 months and up to 1 year for very large size turbines.
Refurbished Wind Turbines Process:
Tower/Head: Inspect/replace as needed welds, bearings, blast & paint, the unit will have new base bolts. Major axis and adjust on-axis coupling. Analysis of the state of the ‘I / F’ with the hub, replacement of bearings and seals on hatches. Verification of tolerances in bearing seat shaft and bearings.
Gearbox: Check the stage trains, both primary and secondary for backlash and endplay, replace seals and Verification of tolerances throughout the box. Hydraulic System cleaning and priming circuit pressure and leak test. Change seals, filters, fittings Verification of pressure level and vibration load, and repaint.
Brake unit: Pressure test, replace pads, leading lines (hoses), and rebuild brake caliper – as needed. Meg and test brake motor.
Yaw system: Meg and test yaw motor. Inspect yaw gearbox, fill with fluid. Inspect, adjust slide shoes, or replace if needed
Generator: Disassemble generators, dry and impregnate generator, re-dip armatures, and replace bearings. For small generator, check, adjust or replace belts. Test and adjust the RPM sensor. The dynamic test analyzes noise and vibration and Thermal Verification test and paints unit.
Main shaft: Inspect bearings and seals. Check for wear and end play.
Instruments: Upgrade and test anemometer and wind vane.
Controller: Tighten all terminations and test the upgraded unit.
Rotor Blades: Inspect tips; replace bushings, pins, if needed. Balance blades to each other.
SCADA: Upon request, designing and installing a complete SCADA/Remote monitoring system
Refurbished Wind Turbines
MWPS World can arrange to convert most wind turbine models to either 50Hz or 60Hz.
If you decide to purchase a used wind turbine including refurbishing, please let us know at the time of inquiry and we are happy to provide a detailed price quote including a complete refurbishing schedule.
Please contact us with any question you may have about the refurbishing you’re your wind turbine.
This immaculately conditioned BONUS/B33 was decommissioned in Q4 – 2014 due to re-powering. De-Rated with a re-wound generator to 250kW – This turbine can generate up to and in excess of 700,000 kWh per annum at 7m/sec average wind speed measured at 30m AGL.
The tower came into 2 sections, so this turbine was relatively cheap and easy to transport.
MWPS Global can assist in dismantling, worldwide shipping & transportation as well as full refurbishing and upgrade services at highly competitive prices.
MWPS Global works with highly skilled remanufacturers, refurbishers, and machinists. This ensures the re-manufactured equipment is properly restored to the original manufacturers’ specifications and is refurbished according to our high standards. Refurbished wind turbines offered by MWPS Limited are completely disassembled and thoroughly inspected and cleaned. Our highly experienced wind turbine refurbishment affiliates evaluate the condition of the reconditioned wind turbine and replace all wear parts. The main moving components will be reconditioned to new or better than new standards. The controls, gearbox, hub, generator, hydraulic system are all thoroughly reconditioned and are either restored or replaced. All refurbished wind turbines come with a full technical report of the reconditioning work undertaken.
Was €23,900 EUR -As is – Where is – plus dismantling (€5,000 EUR)
Danwin 24 – 150kW (50Hz)
Rated output: 150 kW
Tower Height: 30m
Rotor Diameter: 24m
Year of build: 1990/91
Full manufacturers specifications, users guide and service manuals available.
Brand new Unitronics controller System installed
These DANWIN 24 have two separate (and one brand new) controllers and two separate wind vanes, one of these controllers has extra safety option and during faults on high wind, it turns the nacelle out of the wind direction to prevent possible damages.
