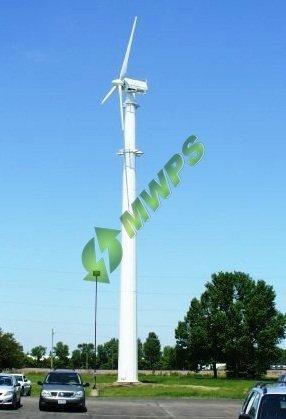

WINDMATIC 17S 95kW – Refurbished

• Cut-in wind speed 3.5 m/s
• Wind speed for max. power 15 m/s
• Cut-out wind speed 25 m/s
• Design wind speed 50 m/s
• Max. electric power 95kW

TURBINE

• Type 3 blades, stall regulated
• Diameter 17m
• The direction of rotation counterclockwise
• RPM 41-42/58-59 rpm
• Mass (inc.1 hub) 1240kg

BLADES

• Beam material reinforced fiberglass
• Length 8,20m
• Rotor Diameter 16m

AERODYNAMIC BRAKES

• Type Spoilers
• Releasing Centrifugally

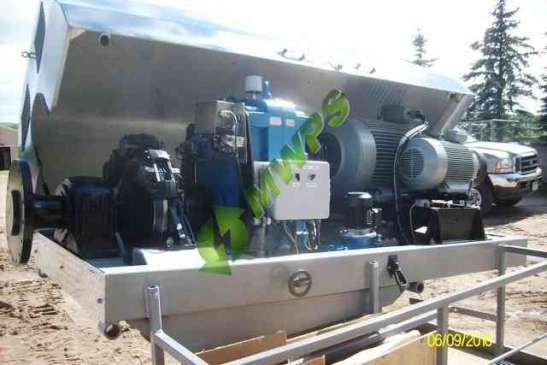

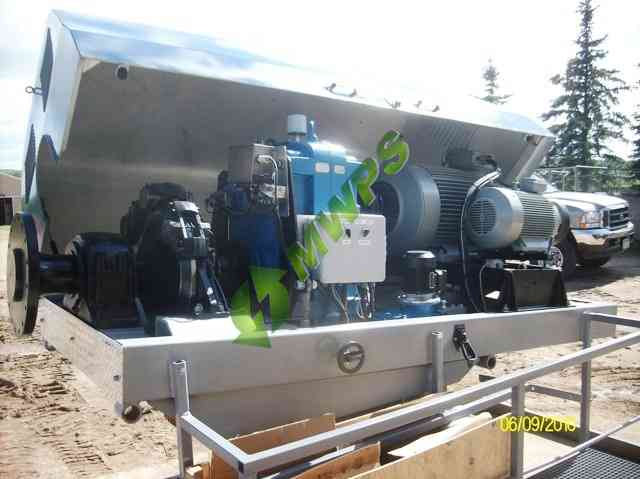

NACELLE

• Cover material Aluminium
• Chassis material Galvanised Steel
• Mass (excl. turbine) 4100kg

OPERATION BRAKE

• Type Disc Brake
• Location Turbine Shaft
• Operation Hydraulic

GEARBOX

• Type Oil lubricated, hollow shaft

GENERATORS

• Type Asynchronous with squirrel cage

YAWING SYSTEM

• Type Yaw gear wheel

The following tower options are available:

• 100′ Lattice Tower
• 120′ Lattice Tower
• 140′ Lattice Tower
• 100′ Monopole Tower
• 115′ Monopole Tower

Please ask for a quotation for the above tower heights.
